    180um Thermoplastic Urethane Film TPU Adhesive Film For Medical Device Coating

    Ask Lasest Price
    Brand Name : HSF
    Model Number : ESSW-15A90
    Certification : ISO, SGS, RoHS
    Payment Terms : T/T, L/C
    Supply Ability : 120000 kg per week
    Delivery Time : within 20 days
    • Product Details
    • Company Profile

    180um Thermoplastic Urethane Film TPU Adhesive Film For Medical Device Coating

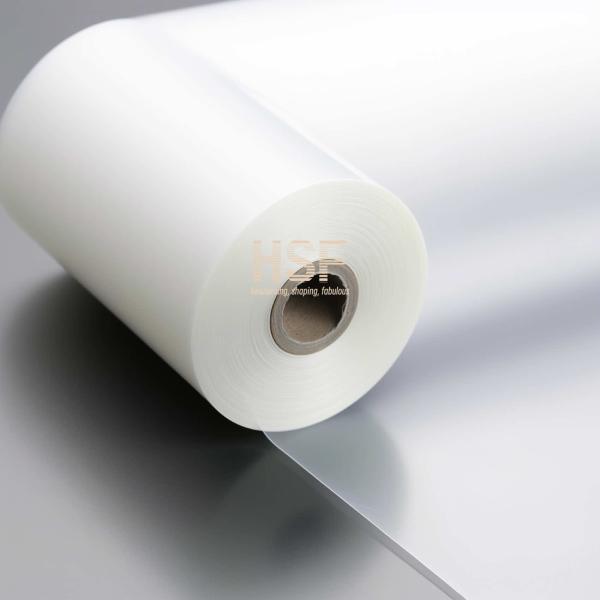

    180 μm thermoplastic urethane film for medical device coating, surgical drapes, gowns, medical packing, wound dressing.


    180 μm thermoplastic urethane (TPU) film, being a thicker material compared to its thinner counterparts, can be used in various application scenarios that require enhanced durability and mechanical strength. Here are some common uses:

    1. Industrial Belting and Conveying: TPU films of 180 μm thickness can be utilized in industrial applications that involve belting and conveying systems. The thicker film provides increased strength and resistance to wear, making it suitable for applications such as conveyor belts, power transmission belts, and lift belts. It offers excellent flexibility and can withstand demanding operating conditions.

    2. Inflatable Structures: TPU films are often used in the construction of inflatable structures, such as tents, shelters, and pneumatic structures. The 180 μm TPU film provides the necessary strength and durability to withstand repeated inflation and deflation cycles. It offers resistance to abrasion, punctures, and UV degradation, ensuring the longevity of the inflatable structures.

    3. Automotive and Transportation: TPU films of this thickness can find applications in the automotive and transportation industry. They can be used as protective films, gaskets, or components in automotive interiors and exteriors. The thicker film provides enhanced resistance to impacts, chemicals, and environmental factors, making it suitable for applications such as vehicle trims, fender liners, and door panels.

    4. Marine and Water Sports Equipment: TPU films are commonly used in the manufacturing of marine and water sports equipment. The 180 μm film can serve as a protective layer or structural component in applications like inflatable boats, water rafts, dry suits, and marine buoys. Its high strength and resistance to water and UV radiation make it well-suited for these demanding environments.

    5. Heavy-Duty Protective Covers: TPU films of this thickness can be employed as heavy-duty protective covers for equipment, machinery, or outdoor furniture. The thicker film provides excellent resistance to abrasion, tearing, and weathering, ensuring prolonged protection against environmental factors. These covers are commonly used in construction sites, industrial facilities, and outdoor storage applications.

    6. Mining and Agriculture: In mining and agricultural industries, 180 μm TPU films can be used for applications that require resistance to chemicals, abrasion, and harsh environmental conditions. These films can be employed as liners for chemical storage tanks, agricultural ponds, or as protective covers for machinery and equipment used in these industries.

    It's essential to consider the specific requirements of each application and consult industry standards, regulatory guidelines, and manufacturer recommendations when selecting and utilizing 180 μm TPU film. Customization options, such as surface treatments, colors, and adhesives, may be available to meet specific application needs.


    Test ItemTest StandardMeasurement UnitParameterTest Result
    WidthTapelinemm695±5700
    ThicknessASTM D3767mm0.18±0.010.18
    SurfaceUnder the D65 light source, compared with the standard sample visually/Side A: Matt, Side B: Dull polishFrosting
    Color/Natural color without obvious color differenceNatural
    HardnessASTM D2240Shore A85±385
    DensityASTM D792g/cm³1.11±0.051.1
    Gram weightGram weight scaleg/cm²185±10188
    Tensile StrengthASTM D 412/Die CMPa

    CD: >40

    MD: >40

    CD: 44.83

    MD: 48.33

    100% Tensile modulusASTM D 412/Die CMPa

    CD: >3

    MD: >3

    CD: 4.42

    MD: 4.57

    300% Tensile modulusASTM D 412/Die CMPa

    CD: >5.5

    MD: >5.5

    CD: 8.25

    MD: 8.91

    Elongation @ breakASTM D 412/Die C%

    CD: >600

    MD: >600

    CD: 690

    MD: 702

    Tearing strengthASTM D 624KN/m

    CD: >60

    MD: >60

    CD: 70.42

    MD: 68.21

    Yellowing resistance ratingASTM D 1148Grade≥4>4
    Flame-retardant ratingGB/T 8410GradeA-0A-0
    Tape release forceGB/T 2791gf/25.4>380>400

    180um Thermoplastic Urethane Film TPU Adhesive Film For Medical Device Coating180um Thermoplastic Urethane Film TPU Adhesive Film For Medical Device Coating180um Thermoplastic Urethane Film TPU Adhesive Film For Medical Device Coating
